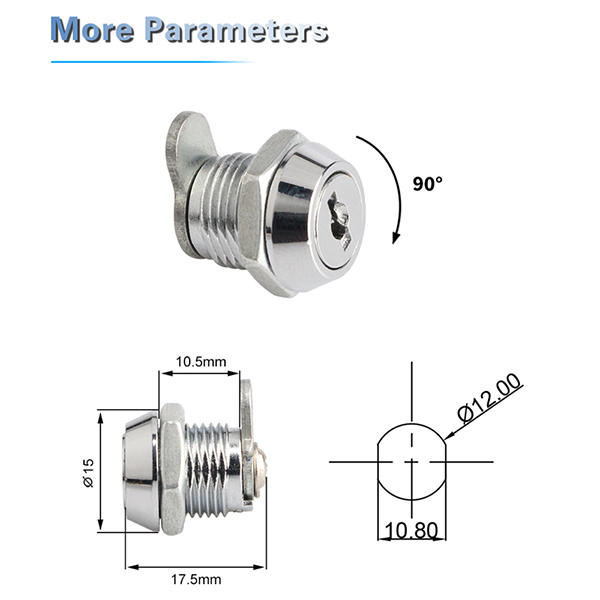

Fig. No | Model | Position | Key Pulls | Turn | Housing Length (mm) | Lock Length (mm) |
1 | JK-313 | 2 | 1 | 90° | 10.5 | 17.3 |
2 | JK-313 | 2 | 2 | 90° | 10.5 | 17.3 |

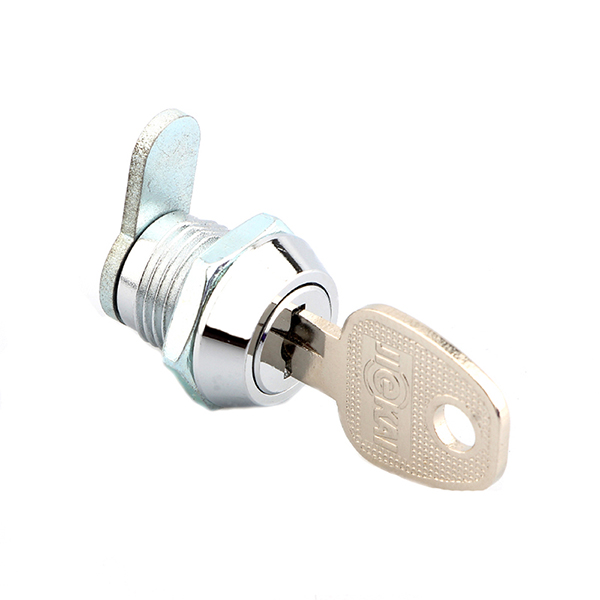

The JK313 cam lock is a compact and reliable locking solution designed for a variety of applications, including the highly secure environment of ATMs. This mini cam lock is crafted from high quality zinc alloy, ensuring durability and resistance to wear and corrosion. Its small size and robust construction make it an ideal choice for securing sensitive equipment and access points.
Material and Construction

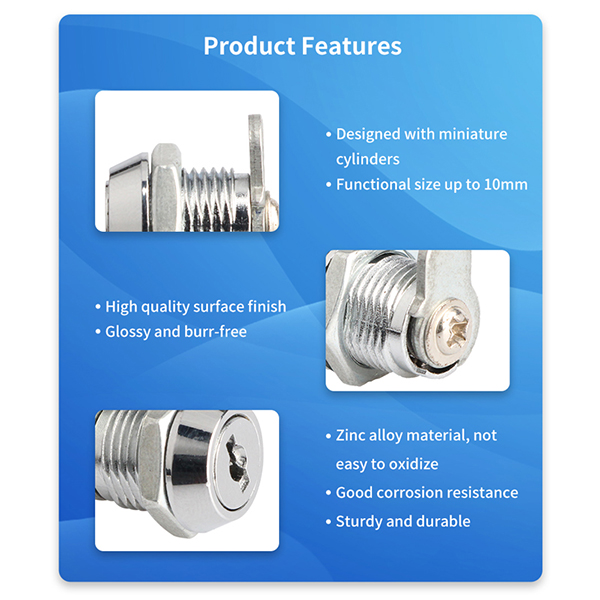

JK313 cam lock is made from zinc alloy, a material known for its strength and durability. This choice of material ensures that the lock can withstand the rigors of frequent use and exposure to various environmental conditions. The lock is typically finished with a chrome plating, which not only enhances its aesthetic appeal but also provides an additional layer of protection against corrosion.
Locking Mechanism
The JK313 features a simple yet effective radial pin tumbler mechanism. This mechanism is operated using a tubular key, which, when inserted and rotated, engages the cam to lock or unlock the device. The cam itself is designed to provide a strong clamping force, ensuring that the access point remains securely closed when locked
. This mechanism is particularly suitable for applications where a high level of security is required, such as ATMs, where unauthorized access can lead to significant financial loss.
Versatility and Applications
While the JK313 cam lock is highly effective in securing ATMs, its versatility extends to other applications as well. It can be used to secure cabinets, drawers, and other storage units in various commercial and industrial settings. The compact size of the lock allows it to fit seamlessly into tight spaces, making it an ideal choice for securing equipment panels and control units.
Installation and Maintenance

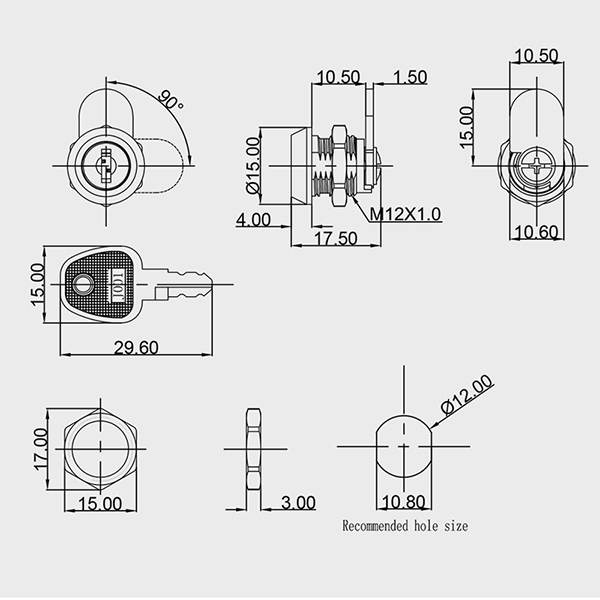

Installing the JK313 cam lock is straightforward. It requires a 12mm hole to be drilled into the door or panel where the lock will be placed. The lock body is then inserted into the hole, and the cam is attached to the exterior. This design allows for easy alignment and secure fastening
. Maintenance of the JK313 is minimal, with regular cleaning recommended to ensure smooth operation. The lock's simple design makes it easy to inspect and maintain, reducing the need for frequent replacements.
Ideal for ATM Security
In the context of ATM security, the JK313 cam lock offers a reliable and cost effective solution. ATMs are often targeted by criminals attempting to gain unauthorized access to the cash and sensitive data stored within. The robust construction and secure locking mechanism of the JK313 provide an additional layer of physical defense against such attempts
. By securing the access points of the ATM, the JK313 helps to protect the machine from tampering and unauthorized access, ensuring the safety and integrity of the financial transactions conducted.
The JK313 cam lock is a compact, reliable, and cost effective solution for securing various applications, including ATMs. Its zinc alloy construction, simple locking mechanism, and versatility make it an ideal choice for businesses and organizations looking to enhance their security measures. Whether used in an ATM or other sensitive equipment, the JK313 cam lock provides the necessary security and convenience to protect valuable assets and control access.
