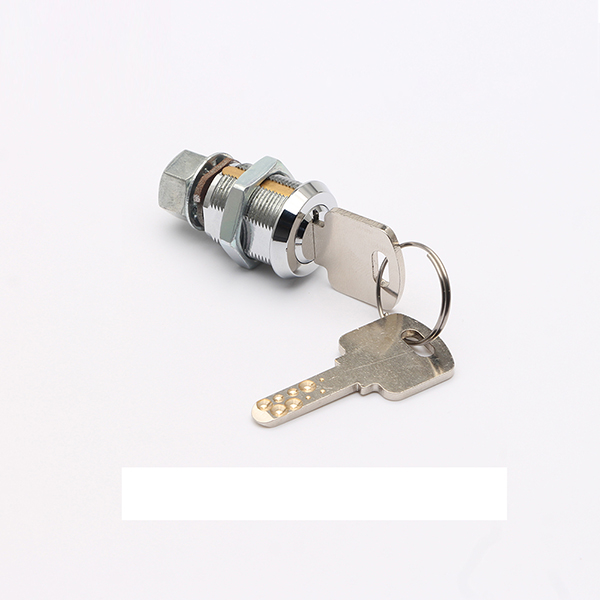

JK530, Tubular Lock Cylinder, 19mm Hole Size, Brass Lock Body, Dimple Key

JK530 Cam Lock Cylinder Application: ATM Machine Cabinet/ Safe Box/ Cash Box/ Toolbox/ Self Service Equipment
Material Brass
Finish Chrome Plated

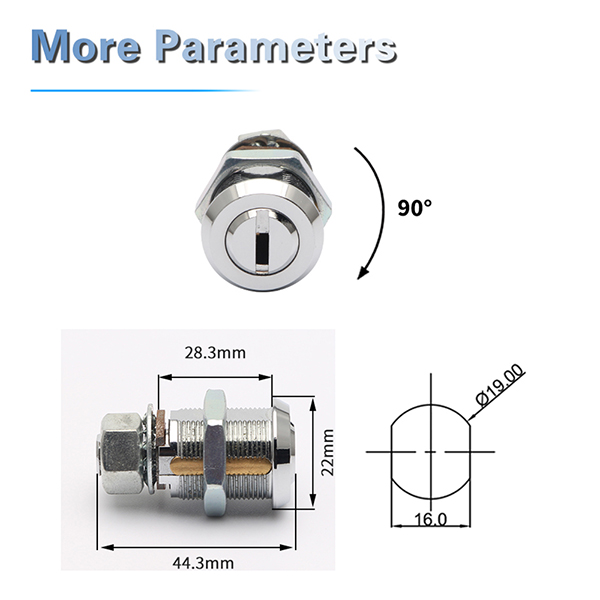

Hole size 19mm
Lock Cylinder 9 pins tumbler mechanism
Key type Dimple key
Key Combination Keyed alike / 10000 combinations
Rotation CW90°/CCW90°
Certificate RoHS
Get a Quote

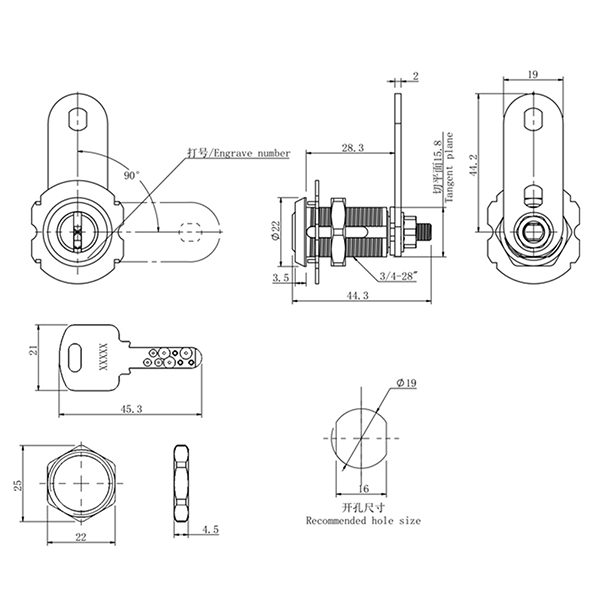

Parameter Table

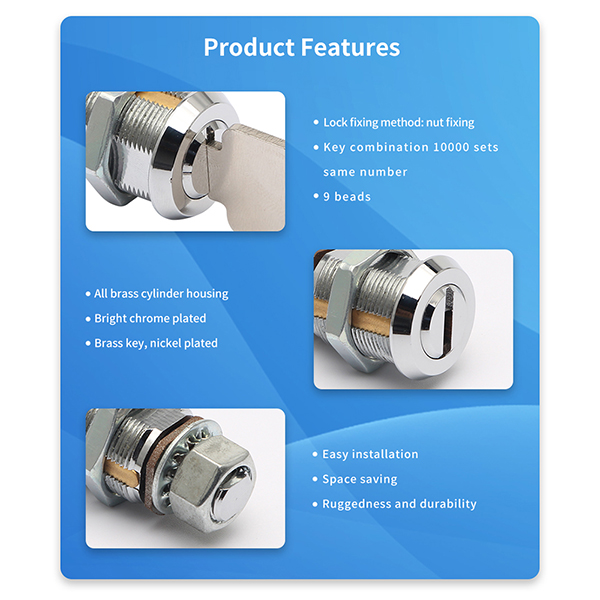

JK530-3.jpgThe JK530 tubular lock cylinder is a high security locking mechanism designed for use in ATMs, cash boxes, safes, and other self-service devices. This lock cylinder is known for its robust construction and reliable performance, making it an ideal choice for applications where security is paramount.

One of the key features of the JK530 is its use of a dimple key, which provides enhanced security compared to traditional keys. The dimple key design allows for a more complex keyway, making it difficult to pick or tamper with the lock. This feature is particularly important for ATM lock cylinders, where unauthorized access can lead to significant financial loss.

The JK530 lock cylinder is available in various keying options, allowing for either the same key number for all locks or up to 10,000 different key combinations. This flexibility makes it suitable for a wide range of applications, from single cash boxes to entire networks of ATMs or safes.

In addition to its security features, the JK530 is designed for durability and ease of use. Its tubular design ensures a smooth and reliable operation, even in high traffic environments. Whether used in an ATM machine lock or a safe box lock, the JK530 provides a secure and efficient locking solution that can be trusted to protect valuable assets
